CITY SYNC CS-30 POWER SUPPLY CONNECTIONS

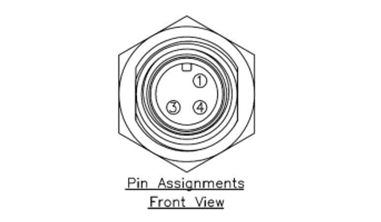

The CS-30 camera should have an M12 cable with three pins: Pin 1, Pin 3, and Pin 4. Pin 1 is +24VDC, Pin 3 is 0VDC and Pin 4 is Earth.

A close-up of a plug Description automatically generated

The cable contains three wires, Red (connected to Pin 1: +24VDC), Blue (connected to Pin 2: 0 VDC), Green (connected to Pin 4: Earth). The wires in the cable need to be connected to the power supply (terminals are labeled). The power supply will also need a wire for 120VAC power.

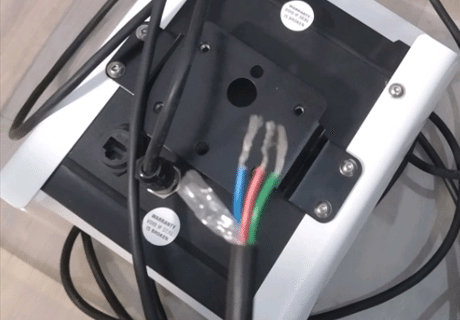

A black and white box with wires Description automatically generated Figure 1 - Underside of the CS-30: M12 connector, Ethernet port and Mount
